You often face the challenge of keeping electrical panels cool, especially in demanding environments. Hybrid Cooling Strategies use fans, air conditioning, and passive devices to improve temperature control. When you combine these methods, you boost efficiency and reduce hotspots. The table below shows that hybrid cooling can lower temperatures by 21°C and increase daily output energy by 8.3%.
| Cooling Method | Temperature Reduction (°C) | Efficiency Improvement (%) | Daily Output Energy Increase (%) |
|---|---|---|---|
| Hybrid Cooling | 21 | 11.23 | 8.3 |
| Reference (No Cooling) | N/A | N/A | N/A |
Facility managers like you value reliability and cost savings. By using a hybrid approach, you extend the life of equipment and save energy.
Key Takeaways
- Hybrid cooling strategies combine fans, AC units, and passive cooling to effectively manage heat in electrical panels.
- Using hybrid cooling can lower temperatures by up to 21°C and increase energy output by 8.3%, enhancing overall efficiency.
- Regular maintenance and monitoring of your cooling system can prevent failures and extend the lifespan of your equipment.
- Smart controls and automation help optimize cooling based on real-time conditions, saving energy and improving performance.
- Investing in advanced cooling technologies prepares your system for future demands and enhances reliability.

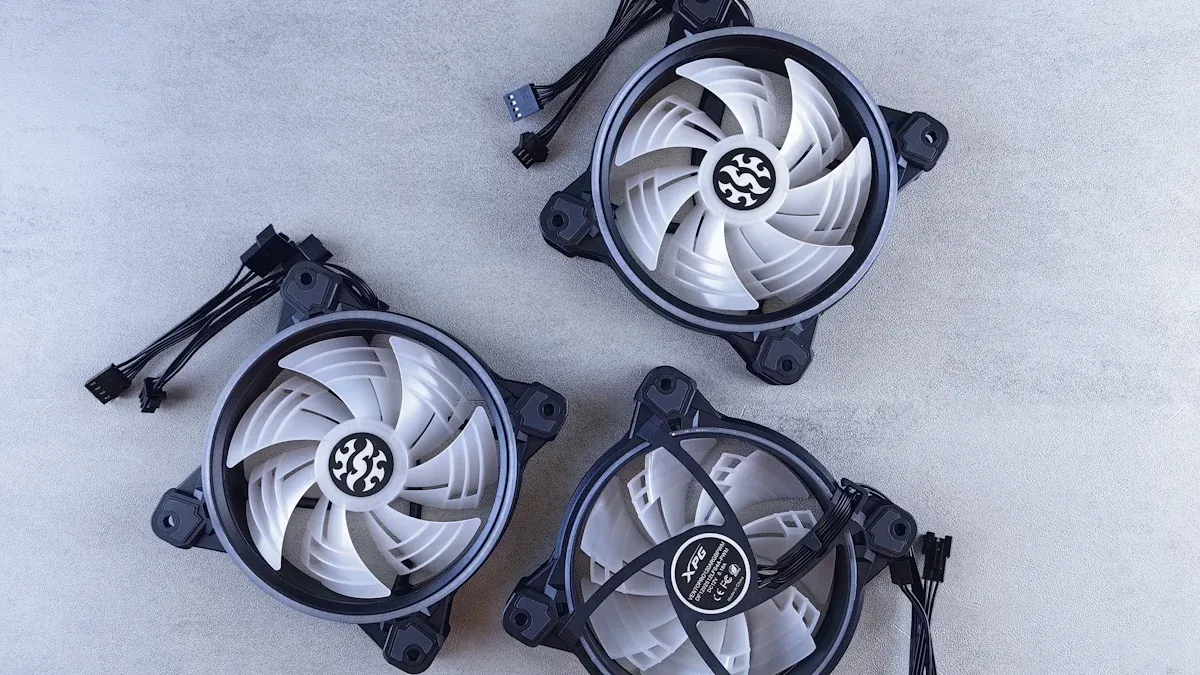

What Are Hybrid Cooling Strategies?
Definition and Key Concepts
You need to understand how Hybrid Cooling Strategies work in electrical panels. These strategies combine different cooling methods to manage heat more effectively. You use both active and passive components to keep temperatures under control. Active cooling includes fans, air conditioning units, and fluid circulation systems. Passive cooling uses materials and designs that move heat away without extra energy.
Here is a table that shows the main components you might use:
| Component | Type | Function |
|---|---|---|
| Active Cooling Methods | Active | Uses fluid or air movement to remove heat from the panel. |
| Passive Cooling Methods | Passive | Absorbs and releases heat using materials like phase change materials (PCMs). |
| Fluid Circulation Systems | Active | Moves cooling fluids through channels to boost heat dissipation. |
| Passive Fins | Passive | Increases surface area for heat loss without using energy. |
| Ultrasonic Humidifier | Active | Adds moisture to the air, which helps cool in dry spaces. |
| Automated Control Unit | Active | Adjusts cooling based on temperature, saving energy. |
Hybrid Cooling Strategies stand out because they offer adaptability. You can use them in many environments without major changes. These systems also scale easily, so you can add more cooling as your needs grow. You get better serviceability, since each part can be maintained or replaced as needed.
Passive and Active Cooling Integration
You often see passive cooling in the form of heat sinks, thermal pads, and smart panel layouts. Passive cooling relies on natural processes like conduction and convection. It does not use moving parts or extra power. For example, heat sinks pull heat away from sensitive electronics and release it into the air.
Active cooling uses devices like fans and AC units. These tools force air or fluids to move heat out of the panel. When you combine passive and active methods, you get the best results. Passive parts handle steady, low-level heat. Active parts kick in when temperatures rise quickly or reach dangerous levels.
Tip: Integrating both methods helps you reduce hotspots and improve efficiency. You also extend the life of your equipment.
Hybrid Cooling Strategies improve performance by lowering surface temperatures and boosting electrical efficiency. You can optimize your system by using automated controls that respond to real-time conditions. This approach keeps your panels safe and reliable.
Benefits of Hybrid Cooling
Efficiency and Hotspot Reduction
You can boost the efficiency of your electrical panels by using Hybrid Cooling Strategies. These systems help you manage heat and reduce temperature hotspots. When you keep your panels cool, you get more power and better performance. For example, a conventional PV panel reaches a maximum power output of 19.8 W with an efficiency of 11.72%. If you use water-cooled or nanofluid-cooled systems, you can see peak power rise to 22.8 W and 24.2 W, with efficiency climbing to 13.5% and 14.33%.
- Hybrid cooling combines thermal regulation and hotspot mitigation.
- You lower surface temperatures from 64.2°C to 31.54°C with the right setup.
- Improved cooling means fewer hotspots and more uniform temperatures.
Note: When you use thermoelectric generators and ultrasonic atomization, you can address temperature spikes quickly and keep your system running smoothly.
Cost and Energy Savings
You save money and energy when you choose hybrid cooling. These systems use less power than traditional cooling methods. The table below shows how much energy you can save:
| Cooling System Type | Energy Savings Percentage |
|---|---|
| Hybrid Cooling | 14.1% |
| Hybrid Cooling | 16% – 49% |
| Dual Mode System | 37.4% |
You can also cut energy use by 32 percent by adjusting the thermostat and using fans, while keeping your workspace comfortable.
Reliability and Longevity
Hybrid Cooling Strategies help you protect your equipment and extend its life. When you keep temperatures low, you prevent damage and reduce the risk of failure. Studies show that effective cooling can increase power output by over 53% during extreme heat.
- Integration of cooling devices improves performance and extends the life of electrical panels.
- You can see the operational life of PV cells increase from 30 years to 50 years with proper cooling.
- Lower temperatures mean fewer repairs and less downtime.
You get a reliable system that works better and lasts longer.

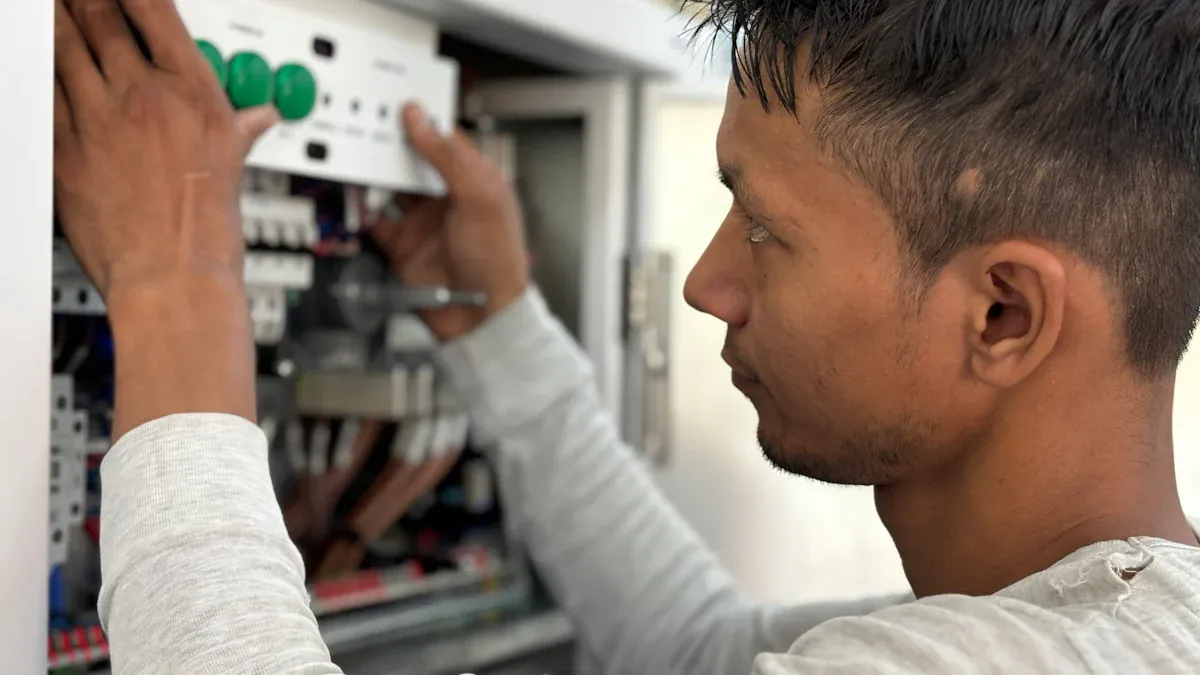

Implementing Hybrid Cooling
Choosing Fans, AC, and Heat Sinks
You need to select the right components for your electrical panel. Start by looking at your panel’s size, how much heat it produces, and the environment around it. These factors help you decide what type of fan, AC unit, or heat sink works best.
- Check your cooling needs based on panel size and heat output.
- Think about cost and energy efficiency.
- Choose parts that are easy to install and maintain.
You can use different cooling technologies. Some common options include vapor compression, absorption, adsorption, desiccant-evaporative, and multi-evaporator cooling. Each method has its own strengths for different situations.
Here is a table with recommended specifications for fans and AC units:
| Specification | Value |
|---|---|
| Thermal Capacity | Up to 396 tons |
| Flow Rate | Up to 1,260 USGPM |
| Fan Type | Hybrid / Crossflow / Axial Fan / Induced Draft |
When you match the right equipment to your needs, you get better performance and longer system life.
Installation Tips
Proper installation helps you get the most from your Hybrid Cooling Strategies. Begin with a site assessment. Make sure you have enough space and good airflow for both indoor and outdoor units.
- Mount indoor units on strong walls.
- Place outdoor units on solid bases to stop vibrations.
- Use quality materials for refrigerant and electrical lines.
- Follow local codes for all connections.
- Integrate ductwork to improve airflow and prevent leaks.
Avoid common mistakes during installation. Here are some things to watch out for:
- Place the outdoor unit in a shaded spot with good airflow.
- Use a sealed enclosure for electrical connections.
- Install a disconnect switch near the outdoor unit.
| Common Installation Mistakes | Description |
|---|---|
| Improper Electrical Work | Needs a dedicated circuit and proper grounding to avoid hazards. |
| Incorrect Placement of Indoor Units | Poor airflow from bad placement reduces efficiency. |
| Neglecting Safety Regulations | Ignoring codes can cause problems and void warranties. |
You should also use the correct wire gauge and outdoor-rated wire for electrical connections. Make sure line sets are installed properly to avoid leaks and loss of efficiency. Always follow local building codes to keep your system safe.
Tip: Careful installation reduces the risk of breakdowns and keeps your cooling system running smoothly.
Control and Automation
You can boost your system’s performance with smart controls and automation. Automated systems let you adjust cooling based on real-time temperature and humidity. This keeps your electrical panels at the right temperature, even when loads or weather change.
Implementing a hybrid climate system that combines sealed and ventilated enclosures allows for optimal temperature and humidity control. Active air dampers enable dynamic control of ambient air intake, which is crucial for maintaining ideal conditions during varying load and environmental scenarios.
Use sensors and programmable controllers to manage fans, AC units, and dampers. This setup helps you save energy and extend equipment life. You can also monitor your system remotely and get alerts if something goes wrong.
Hybrid Cooling Strategies work best when you combine the right equipment, careful installation, and smart automation. This approach gives you reliable, efficient, and long-lasting cooling for your electrical panels.
Common Challenges and Solutions
Energy Management
You may notice that hybrid cooling systems can use more energy if not managed well. To address this, you can use a mix of centralized and localized cooling. This approach lets you target only the areas that need extra cooling. Machine learning tools can help you predict cooling needs in real time. When you use these tools, you reduce wasted energy and keep your panels at the right temperature. In one study, a hybrid system reached a coefficient of performance (COP) of 1.36. This number is higher than the 1.28 COP of a traditional central system. You get better energy management and lower costs.
Tip: Use smart controls and sensors to adjust cooling based on real-time data. This helps you save energy and maintain comfort.
Maintenance Issues
Hybrid cooling systems need regular care to work well. You can choose from several maintenance schedules. Some follow manufacturer and industry guidelines. Others use data from your system to decide when to perform checks. A hybrid approach combines both methods for the best results.
| Maintenance Approach | Description |
|---|---|
| Manufacturer and Industry-Based Scheduling | Follows manufacturer recommendations and industry best practices for optimal maintenance frequency. |
| Condition-Based Maintenance | Tailors maintenance based on data from the cooling units, accounting for unique operational conditions. |
| Hybrid Preventative Maintenance | Combines both approaches for a comprehensive and responsive maintenance schedule. |
- Inspect your system every 30,000 to 50,000 miles.
- Replace coolant every 100,000 to 150,000 miles.
- Test coolant condition every 30,000 miles.
Regular checks help you catch problems early and keep your system running smoothly.
System Compatibility
When you combine fans, AC units, and passive cooling, you may face compatibility issues. Some HVAC systems need different voltages than your renewable energy setup. Not all HVAC parts work well with every energy source. You need to match your components carefully.
| Compatibility Issue | Explanation |
|---|---|
| Different Voltage Requirements | HVAC systems may require different voltages than renewable energy setups. |
| System Matching | Not all HVAC components work well with renewable energy sources. |
You should check voltage and system requirements before you install new parts. Careful planning helps you avoid costly mistakes and ensures your hybrid cooling system works as intended.
Best Practices for Electrical Panels
Monitoring and Optimization
You need to monitor your hybrid cooling system to keep your electrical panels safe and efficient. Modern wireless sensors make this task easier and more accurate.
- ALTA® Wireless Temperature Sensor tracks temperature changes in your HVAC system.
- ALTA Duct Temperature Sensor helps you monitor duct temperatures for both short-term and long-term use.
- Wireless AC Current Meters measure how much power your cooling system uses, so you can spot problems early.
- Monnit Thermostat lets you adjust temperature settings automatically, even from your phone.
- ALTA Vibration Meter detects unusual vibrations in equipment, warning you before issues become serious.
You can use data analytics to get even more from your system. The table below shows how analytics help you optimize cooling:
| Application | Description |
|---|---|
| Predictive Maintenance | Tracks cooling efficiency and finds problems before they affect performance. |
| Optimization of Cooling Strategies | Gives feedback to fine-tune your system for the best results. |
| Design Improvements | Finds hot spots so you can improve panel layout and cooling design. |
Tip: Regular monitoring and smart analytics help you prevent failures and keep your system running smoothly.
Safety Guidelines
You must follow safety standards when you install and operate hybrid cooling systems. Real-time monitoring warns you about voltage, current, and temperature risks. Thermal runaway protection uses both active and passive cooling to stop overheating.
Grid security features, like anti-islanding protection, keep your system safe during outages. Choose equipment with an IP65 rating to protect against dust and water. Make sure your system meets electromagnetic compatibility (EMC) standards to avoid interference.
| Safety Measure | Description |
|---|---|
| Real-time Monitoring | Tracks voltage, current, and temperature for early warnings. |
| Thermal Runaway Protection | Prevents overheating with active and passive cooling. |
| Grid Security | Uses anti-islanding to protect during grid outages. |
| Environmental Adaptability | IP65 rating shields against dust and water. |
| Electromagnetic Compatibility | Meets EMC standards to avoid device interference. |
Follow these steps for safe installation:
- Pick a location with good airflow, away from sunlight and moisture.
- Use copper wires rated for your application and check polarity.
- Connect to the AC grid with dedicated breakers to prevent backfeeding.
Always follow local codes and manufacturer instructions to keep your system safe.
Future-Proofing
You can prepare your electrical panels for the future by choosing advanced hybrid cooling technologies. New systems use kinetic energy from return water to drive fans, which saves electricity. Automatic temperature control adjusts fan speed based on water temperature, making cooling more efficient.
The table below highlights future trends:
| Advantage | Description |
|---|---|
| Significant Energy Saving | Uses return water energy to reduce electricity use. |
| Reduced Operational Costs | Fewer electric motors mean lower maintenance costs. |
| Enhanced Operational Reliability | Dual power systems keep your panels running in all conditions. |
| Automatic Temperature Control | Adjusts fan speed for optimal cooling and energy savings. |
By investing in these technologies, you make your system more reliable and ready for tomorrow’s demands.
Conclusion
You now understand how hybrid cooling strategies can transform the way you manage electrical panels. By combining fans, AC units, and passive cooling, you create a system that keeps temperatures low and equipment safe. This approach helps you reduce hotspots, save energy, and extend the life of your panels.
- Hybrid cooling gives you:
- Better temperature control
- Fewer equipment failures
- Lower energy bills
- Longer panel lifespan
You can see real results when you use the right mix of cooling methods. Smart controls and regular monitoring help you catch problems early. You avoid costly repairs and keep your facility running smoothly.
Tip: Always check your system for signs of overheating or wear. Schedule routine maintenance to keep everything working at its best.
You should also think about the future. New technologies make hybrid cooling even more efficient. Upgrading your system now prepares you for higher demands and changing environments.
If you want to get the most from your electrical panels, start by reviewing your current cooling setup. Look for ways to add or improve hybrid solutions. Even small changes can make a big difference in performance and reliability.
:bulb: Remember: A well-cooled panel is a reliable panel. Take action today to protect your investment and ensure safe, efficient operation for years to come.
You gain many benefits when you use hybrid cooling for your electrical panels. You lower energy costs, reduce equipment failures, and extend panel life.
- Check your current cooling setup.
- Plan upgrades that fit your needs.
- Schedule regular maintenance.
Tip: Small changes in cooling can make a big difference in safety and performance. Start improving your system today.
FAQ
What is a hybrid cooling system for electrical panels?
A hybrid cooling system uses both active and passive methods. You combine fans, AC units, and heat sinks to control panel temperature. This approach gives you better cooling and energy savings.
How do I know if my panel needs hybrid cooling?
You should check for frequent overheating, hot spots, or equipment failures. If you see these signs, your panel may need a hybrid cooling upgrade.
Tip: Use temperature sensors to monitor your panel. High readings mean you need better cooling.
Can I install hybrid cooling myself?
You can install basic components like fans. For AC units or advanced controls, you should hire a qualified technician. This keeps your system safe and reliable.
What maintenance does a hybrid cooling system need?
You need to clean filters, check for leaks, and inspect wiring. Schedule regular checks every few months. Replace worn parts quickly to avoid breakdowns.
| Task | Frequency |
|---|---|
| Clean filters | Monthly |
| Inspect wiring | Quarterly |
| Check for leaks | Quarterly |
